DIY Dozer Root Rake Plans – DXF Files & Build Guide

Build your own root rake for land clearing, brush removal, and ground cleanup. Designed to fit John Deere, Caterpillar, Komatsu, and other dozers, this kit includes everything you need to fabricate a high-performance attachment — at a fraction of the cost. Ensure you choose the correct Upright dimension to fit your machine. The width is a little over 10'.

Included in Your Download:

- CNC-ready DXF files for laser or plasma cutting

- PDF build drawings with necessary dimensions

- Material lists, etc.

Choose Your Upright Size

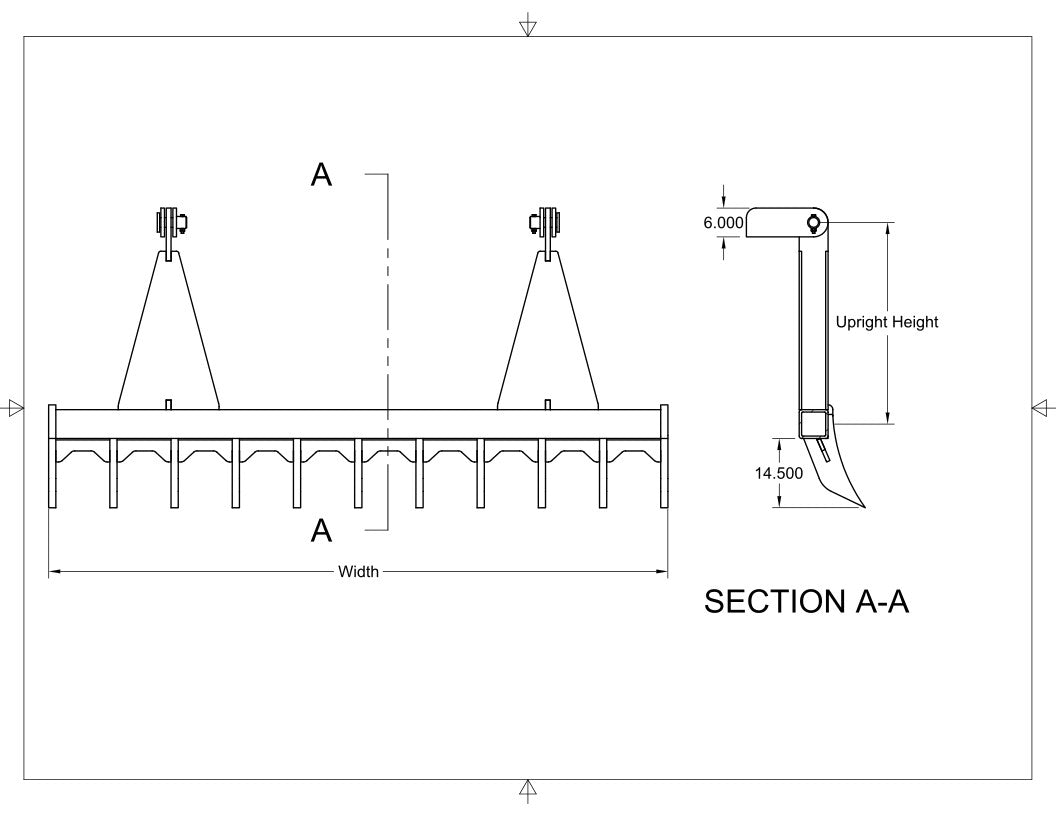

We provide drawings for several upright height options. You are responsible for selecting the correct height based on your specific dozer blade. Simply measure your blade and choose the upright that best fits. If you do not see the one you need, contact us and we will get back to you.

Designed For:

- Individual fabricators and welders

- Equipment owners and operators

- Land clearing and excavation contractors

- Fabrication shops — large or small

- Anyone looking to build durable, cost-effective dozer attachments
