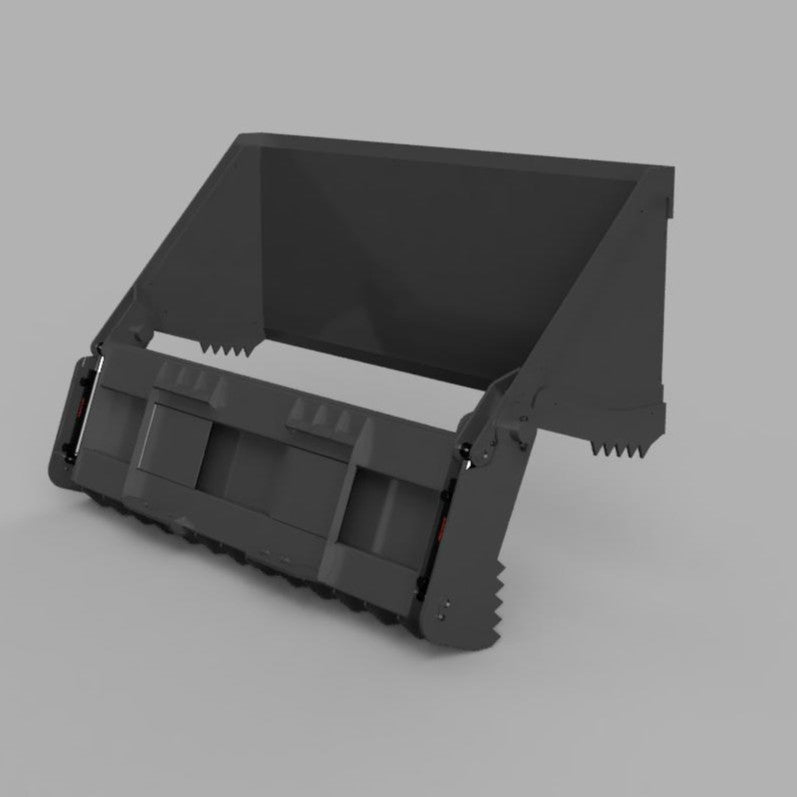

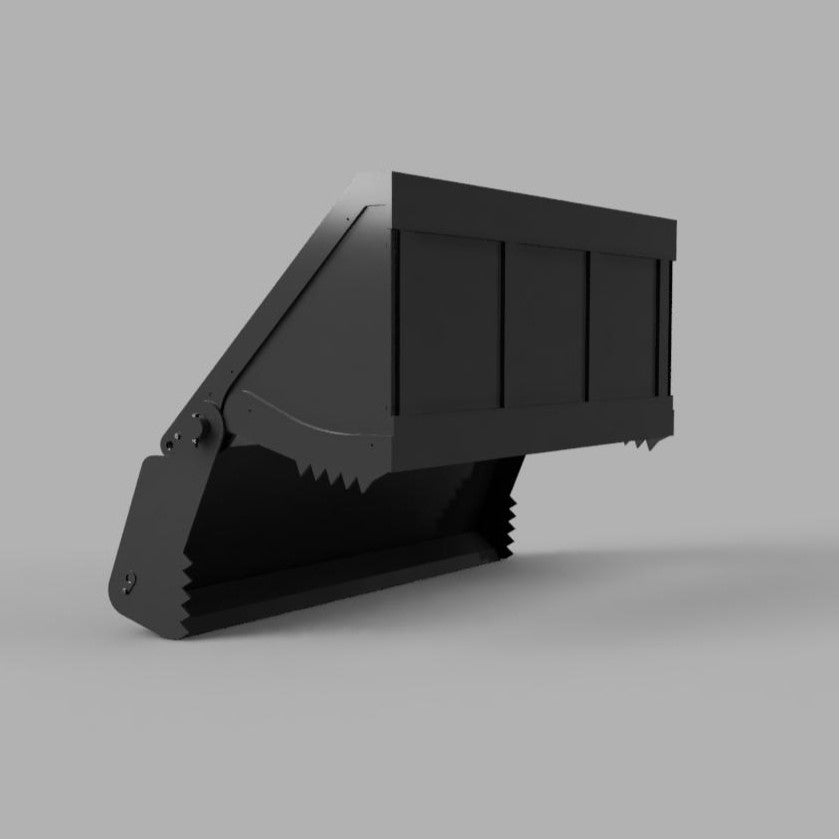

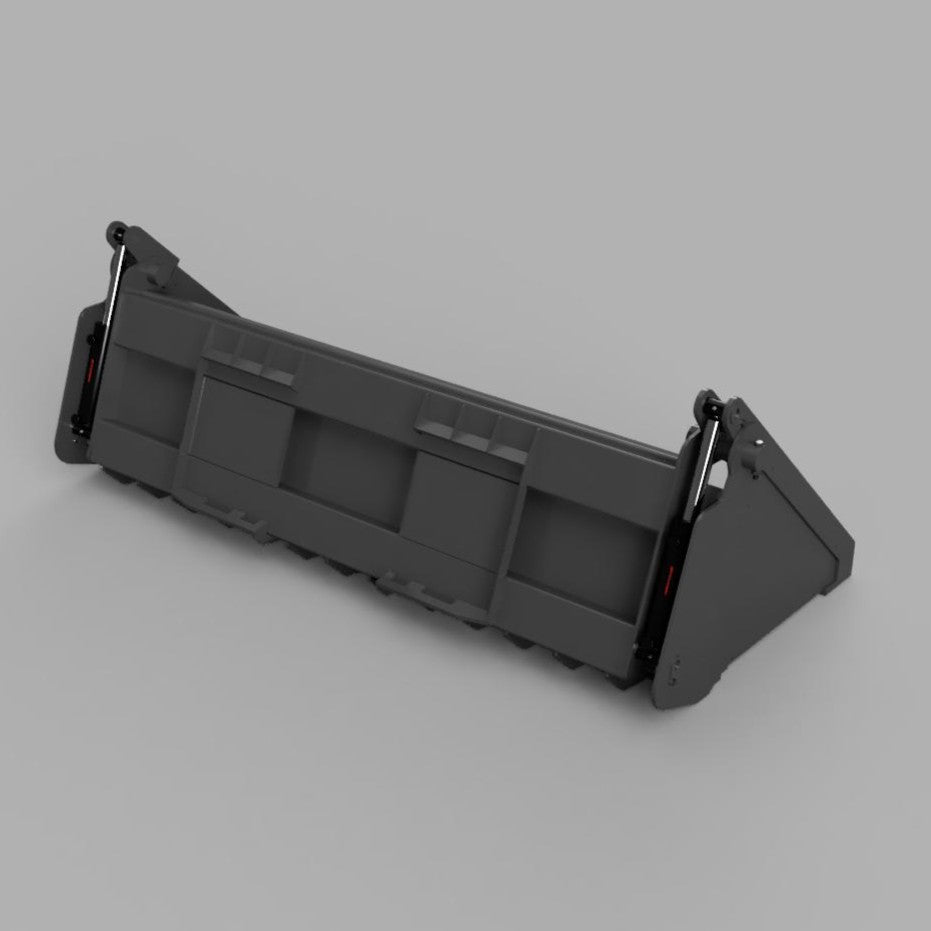

84 Inch 4-In-1 Skid Steer Bucket DXF Cut Files. Instant Download!

Build your own heavy-duty 4-in-1 bucket with this complete DIY digital plan package—designed for fabricators, welders, and equipment owners who want professional results without starting from scratch.

This design combines the versatility of a standard bucket with the functionality of a grapple, dozer blade, and clamshell—making it ideal for gripping, grading, backfilling, and material handling. Whether you're working in construction, landscaping, or farm applications, this 4-in-1 bucket is built to perform.

What’s included:

• DXF Files – Ready to be uploaded to your CAM software.
• PDF Drawings – Clear, detailed assembly instructions, and step-by-step guidance
• Bend Drawings – Accurate bend lines, angles, and dimensions for forming plates correctly
• Bill of Materials (BOM) – Complete list of required materials including plate sizes, thicknesses, pins, bushings, and hydraulic cylinders.
• Exploded Views – Visual breakdowns to simplify assembly and reduce guesswork

Design features:

• Robust construction using commonly available steel sizes
• Optimized geometry for proper clamping force and bucket curl
• Designed for compatibility with standard skid steer quick attach systems
• Balanced for strength without excessive weight

All files are organized for efficient workflow—from cutting to final assembly—so you can spend less time figuring things out and more time building.

Perfect for small shops, independent welders, or anyone looking to expand their equipment lineup with a proven, multi-purpose attachment.

Note: This is a digital download. No physical product will be shipped.
